BRAND NEW !
uaevintagephoto is proud to be SIMMOD's authorised distributor in UAE.
Say goodbye to 3D printed plastic gears and say hello to the SIMple Fit Gear!
The SIMple Fit Gear is the worlds first seamless follow focus gear that combines an all-aluminum gear with an interchangeable compressible insert, allowing you to easily fit any lens. SIMply select the insert size that measures closest to your lens body diameter and attach the gear. It’s a SIMple, elegant, flexible solution with the professional durability and performance of an aluminum gear!
This kit will fit lenses with a focus barrel that measures between 58mm to 61mm in diameter, based on a compression value of -1mm when the rubber insert is fully compressed to fit.
Each kit comes with the following:
1 x Mod 0.8 aluminum follow focus gear / 10mm width
4 x Compressible insert (58mm, 59mm, 60mm, 61mm)
1 x Shimming Tape
You can also visit our CINE BUNDLE OFFER (here) to buy a complete cine kit with conversion kit, Follow Focus Gears, Front Cine Rings, Front & Back caps etc...

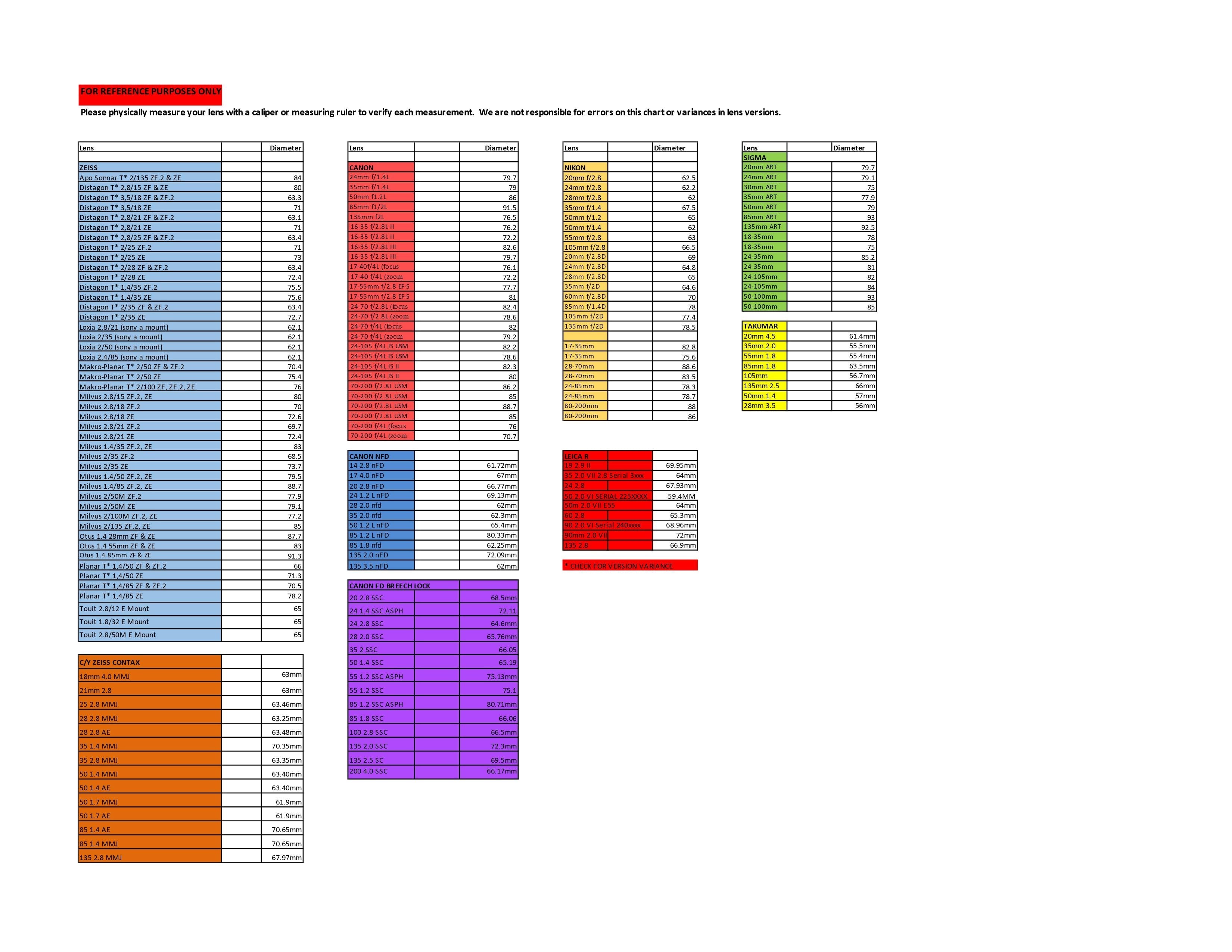

SIZE CHECK: have a look at our lens database in the picture attachments as an indication of the most probable size. Actual size may vary slightly from lens to lens, and buyer is responsible for buying the right size.
Watch Mark Holtze' video on how SIMple it is to install Follow Focus Gears on any lens using our SIMple Fit Gears! CLICK HERE
SIMple instructions :
1: Using a caliper or measuring tape, measure the diameter of your focus ring.
2: Once you have determined the diameter of your focus ring, select the insert that is closest to your diameter. For example, if your lens barrel measures 76.5mm, you would select and install the 76mm insert and use our supplied shimming tape to fine tune the fitment. Install the insert into the precision channels in the aluminum gear.
3: VERY IMPORTANT. Set your focus to infinity on the lens. Failure to set your focus to infinity can result in damage to your helicoid.
4: With your lens sitting upright and focus set to infinity, install the focus gear from the top-down, pushing gently and evenly until it comes to rest at your desired spot on the focus ring. If installing from the top-down is not possible, you can install from the bottom, however, it is very important to set your focus to infinity before putting any upward pressure.
5: SIMMOD and UAE Vintage Photo are not responsible for any damage resulting from installation of the SIMple gear.
